复材行业专用装备供应商 涂布/复合/分切整体解决方案供应商

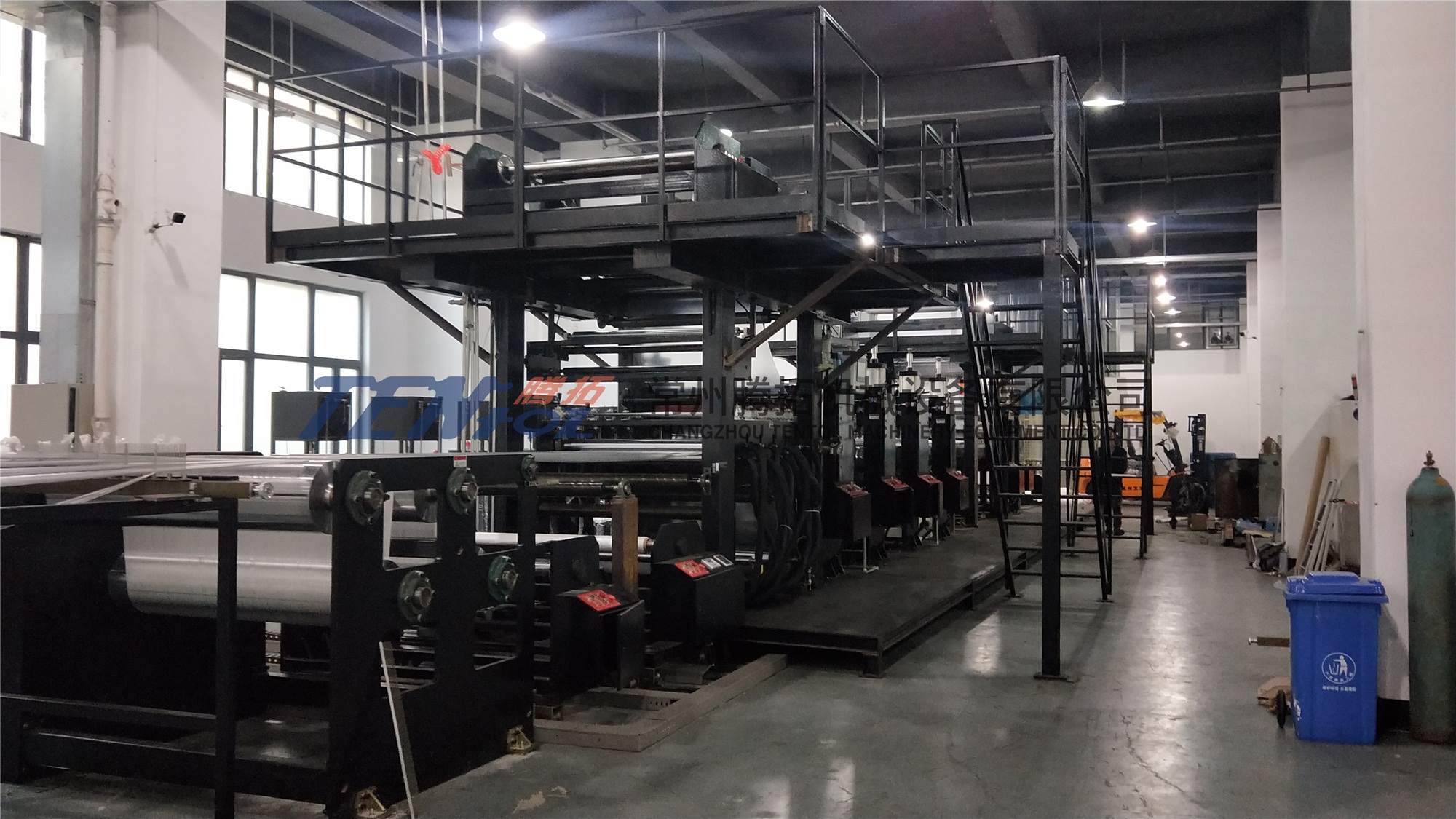

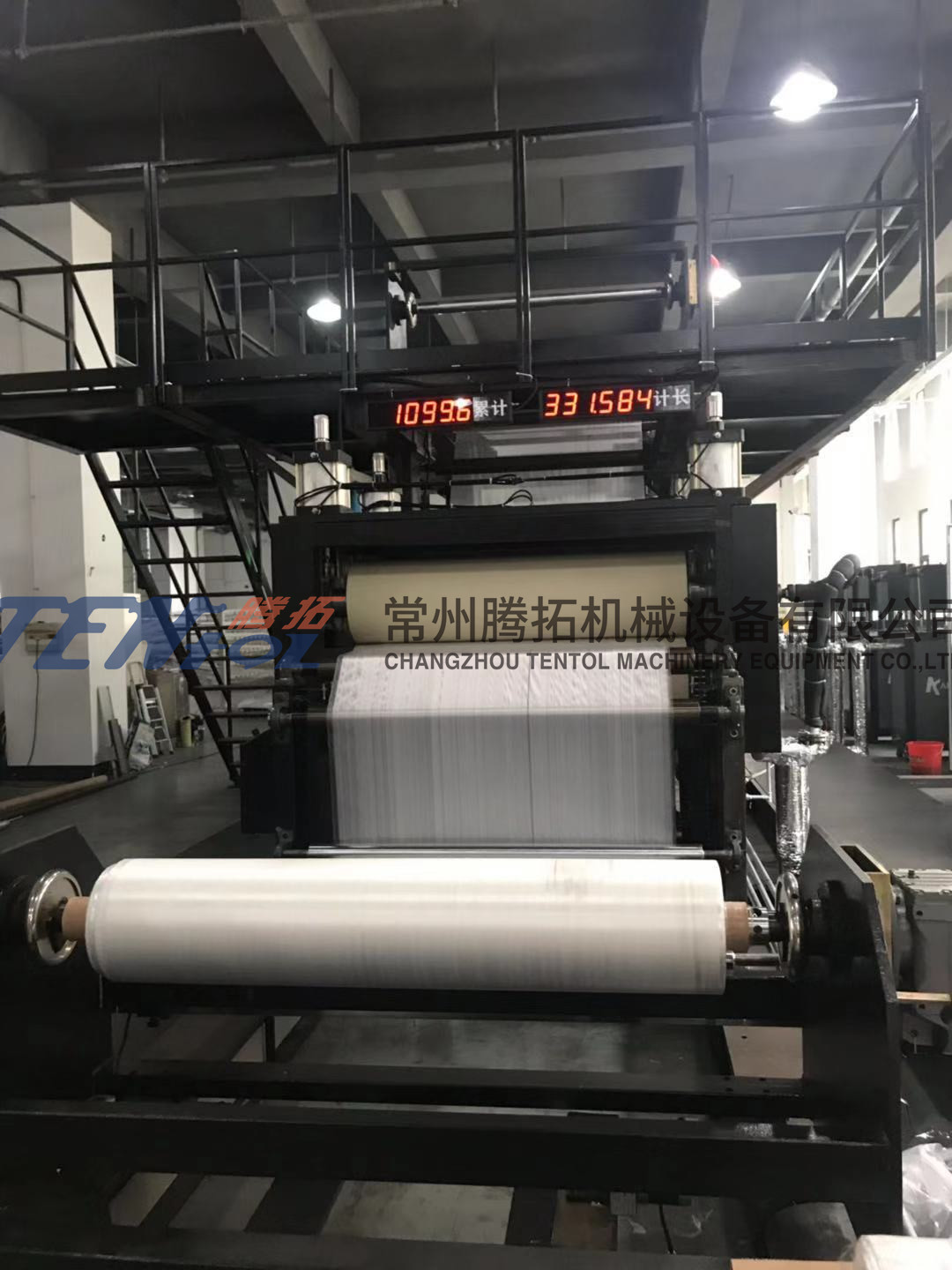

本公司的碳纤维预浸料生产线具有涂膜精度高、产品面密度均匀性好、生产速度稳定、适应产品种类广、控制响应灵敏迅速等优点。
The prepreg line has the advantages of high film accuracy, good uniformity of product density, stable production speed, wide range of products, and fast control response.
l 高精度：整线设计制造精度高，辊筒精度<±4μm，涂膜辊、压合辊间隙测量分辨精度0.5μm，控制精度1μm；
High Precision: The line has high precision from design to manufacturing, the roller precision is ±4 micron, press roller gap measurement accuracy 0.5 micron, control accuracy 1 micron;

l 自动化程度高：全线采用伺服控制，中控台大屏集中对轧辊间隙、张力、速度、温度、长度等参数进行自动控制，各单元亦可现场独立操作，操作方便；
automation: The line using servo control, all parameters are easy set and automatically controlled on the large touch screen, such as roll gap, tension, speed, temperature and length, etc. All units can be controlled centrally or can also be operated independently on site, which is convenient for operation;

l 配置丰富： 压辊加热提供导热油、电加热可供选择；
压辊压力提供伺服液压、常规液压、气缸可供选择；
Varied configurations:
Press roll can be heating by oil or electrical；
Press roll pressure provides by servo hydraulic pressure, or normal hydraulic pressure, and also air cylinder for selection；
l 设计人性化：模块化设计，可以方便的对整线工艺进行调整、扩展，满足发展需要；
Design: Modular design, which can easily adjust and expand the process to meet the needs of future development.

l 制造规范：标准化设计制造，各位置辊筒可互换，具有充分的自由度；
Manufacturing: Standardized design and manufacture, such as each position of roller can be interchangeable, with full freedom for users;

l 安装方便：安装于加工过的钢制框架上，安装精度高，可避免现场地坪的不良影响；
Installation: Installed on machined steel frame, installation accuracy is high, can avoid the effect of the job site floor.

l 应用范围广：适应产品范围广，可满足碳纤、玻纤、玄武岩纤维等多种预浸料的生产；
Application: Suitable for a wide range of products, can be used for production of carbon fibers, UHMPE fibers, glass fibers, basalt fibers, etc.

本公司依据预浸料工厂的建设和生产经验，可为客户提供相关增值服务，帮助客户快速的进入稳定生产状态。
Based on the construction and production experience of the prepreg plant, our company can provide relevant value-added services for customers to help them quickly enter a stable production state.

Ø 工厂设计布置方面技术支持，如设备平面布置、电缆桥架走向、物流人流通道设计、现场物料存储布置等；
Technical support in plant design and layout, such as equipment layout, cable bridge orientation, logistics flow channel design, site material storage layout, etc.

Ø 配套设施建设的技术支持，如恒温恒湿车间、冷库、冷水塔、行车等；
Technical support for supporting facilities construction, such as constant temperature and humidity workshop, cold storage, cold water tower, driving, etc.

Ø 提供相关生产管理文件供客户参考，如岗位职责、安全操作规程、设备保养卡、SOP操作法等；

Provide relevant production management documents for customers' reference, such as job responsibilities, safety operation rules, equipment maintenance card, standard operation process, etc.

Ø 操作人员培训服务；
Operator Training Service；

型号model	TT-YGF400	TT-YGF1000	TT-YGF1270
机械速度 Design speed	15m/min	15m/min	15m/min
生产速度 Line speed	1-12m/min	1-12m/min	1-12m/min
产品幅宽 Width	400mm	1000mm	1270mm
产品克重 FAW	30～600gsm	30～600gsm	30～600gsm
树脂黏度 Viscosity	3000～300,000cps	3000～300,000cps	3000～300,000cps
