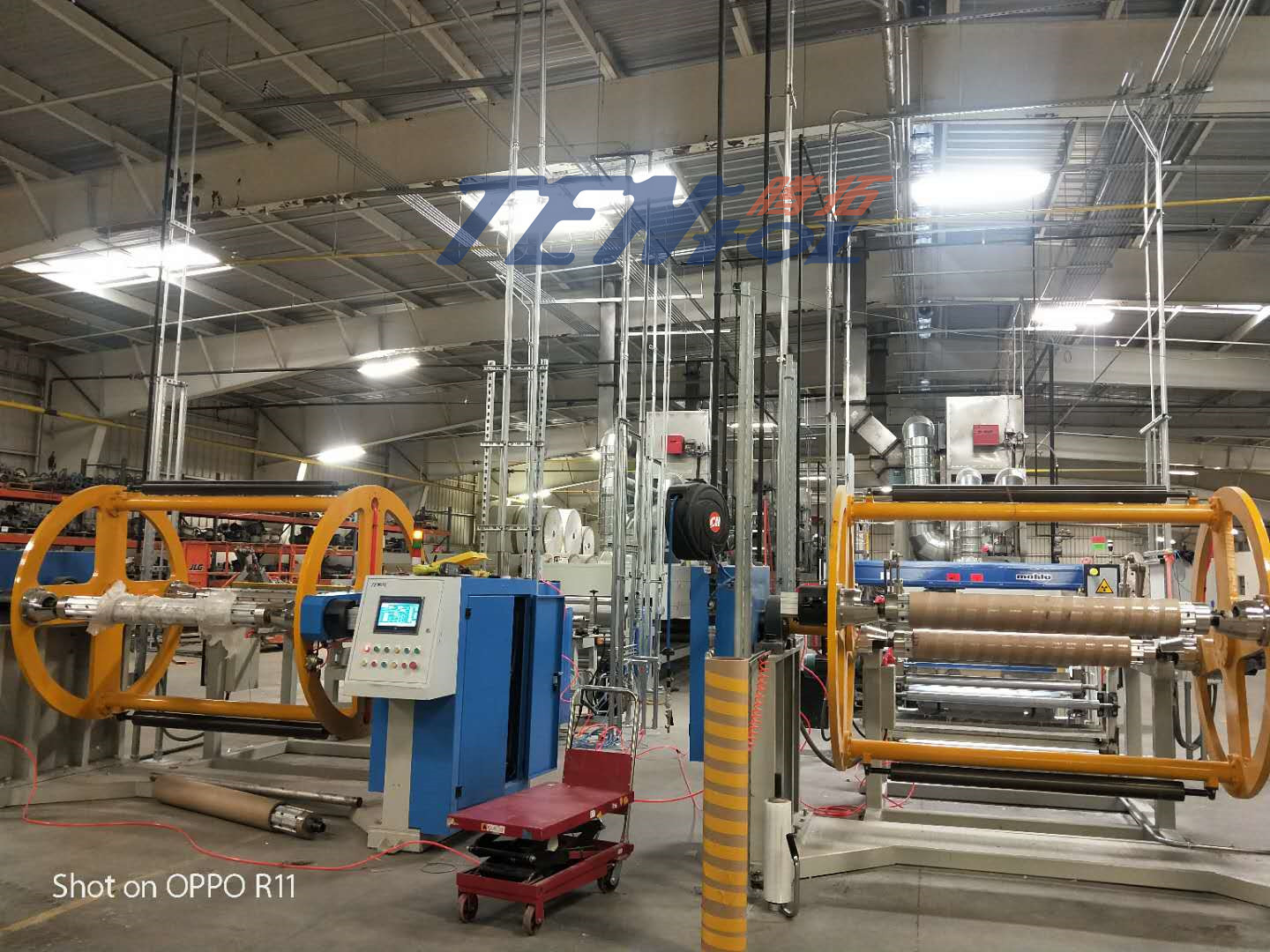

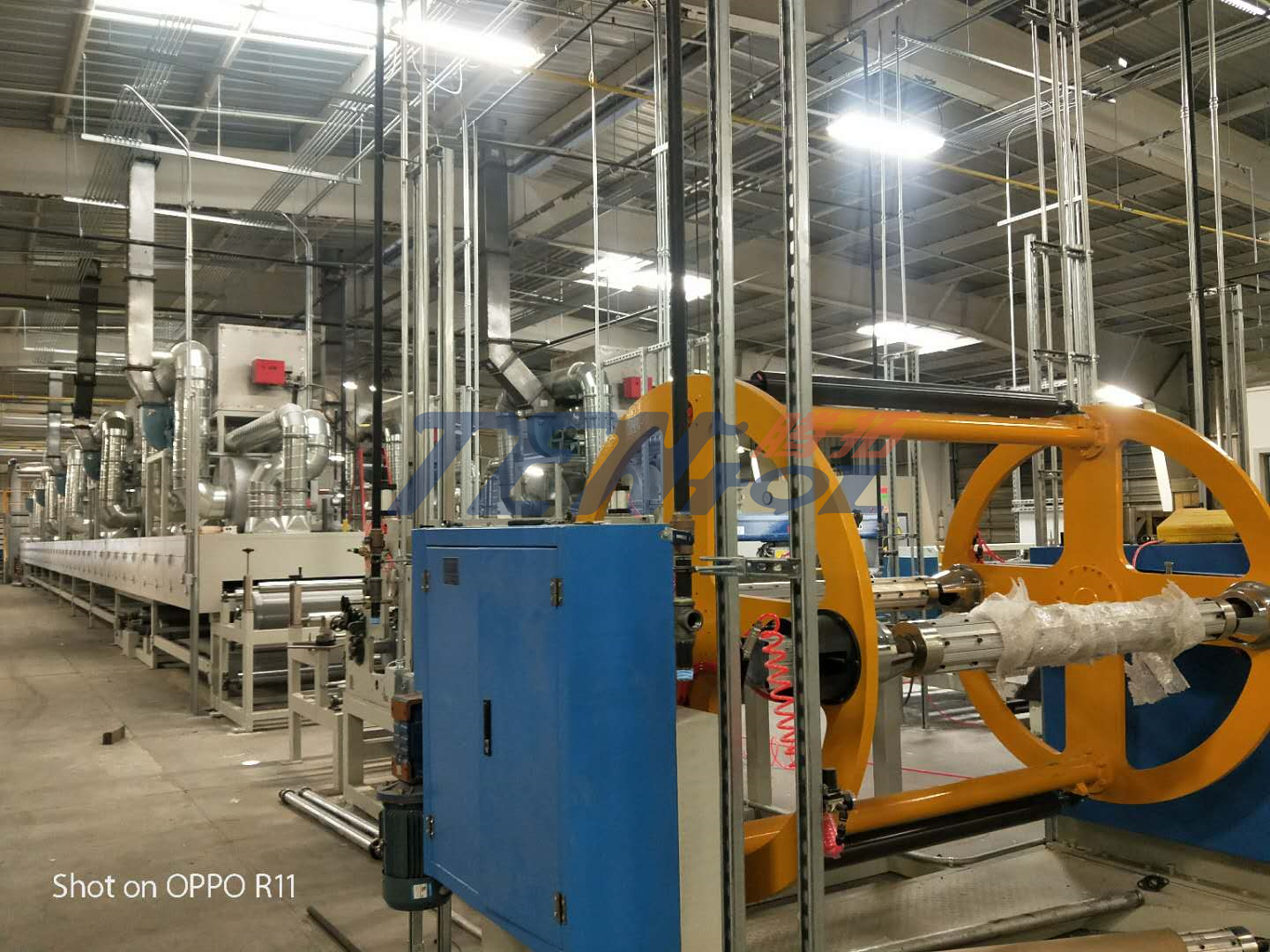

涂层毡生产线

产品类别:涂层毡生产线


点 击 量: 154次


添加日期:2022-03-11

全国热线

0519-85807086

产品简介 / Introduction

产品详情






应用范围applied range)

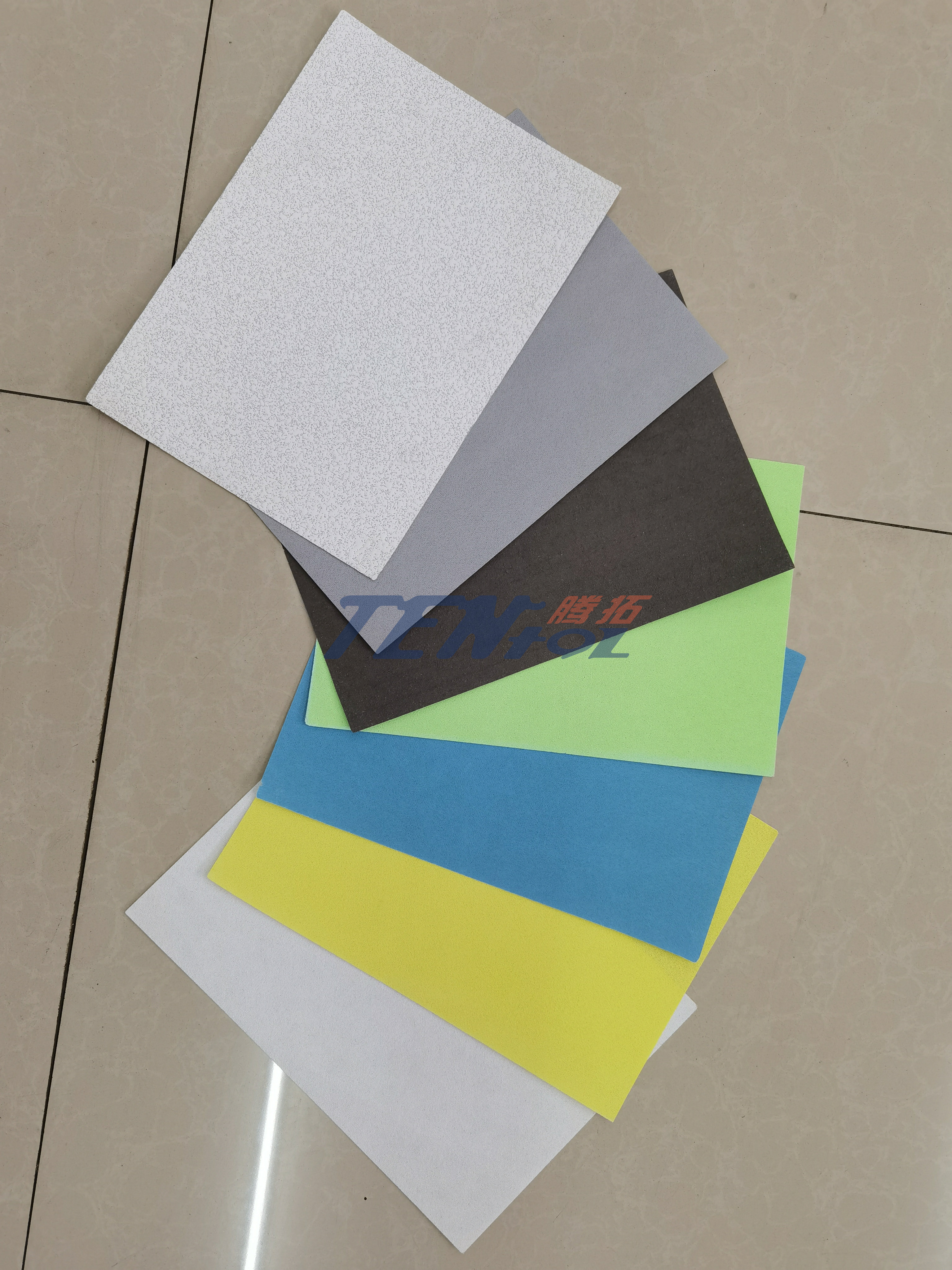

可满足水泥涂层毡、吸音毡、防水毡、染色毡、装饰毡等产品的生产

It can meet the production of cement coated felt, sound absorbing felt, waterproof felt, dyed felt, decorative felt and other products

设备简介(equipment introduction):

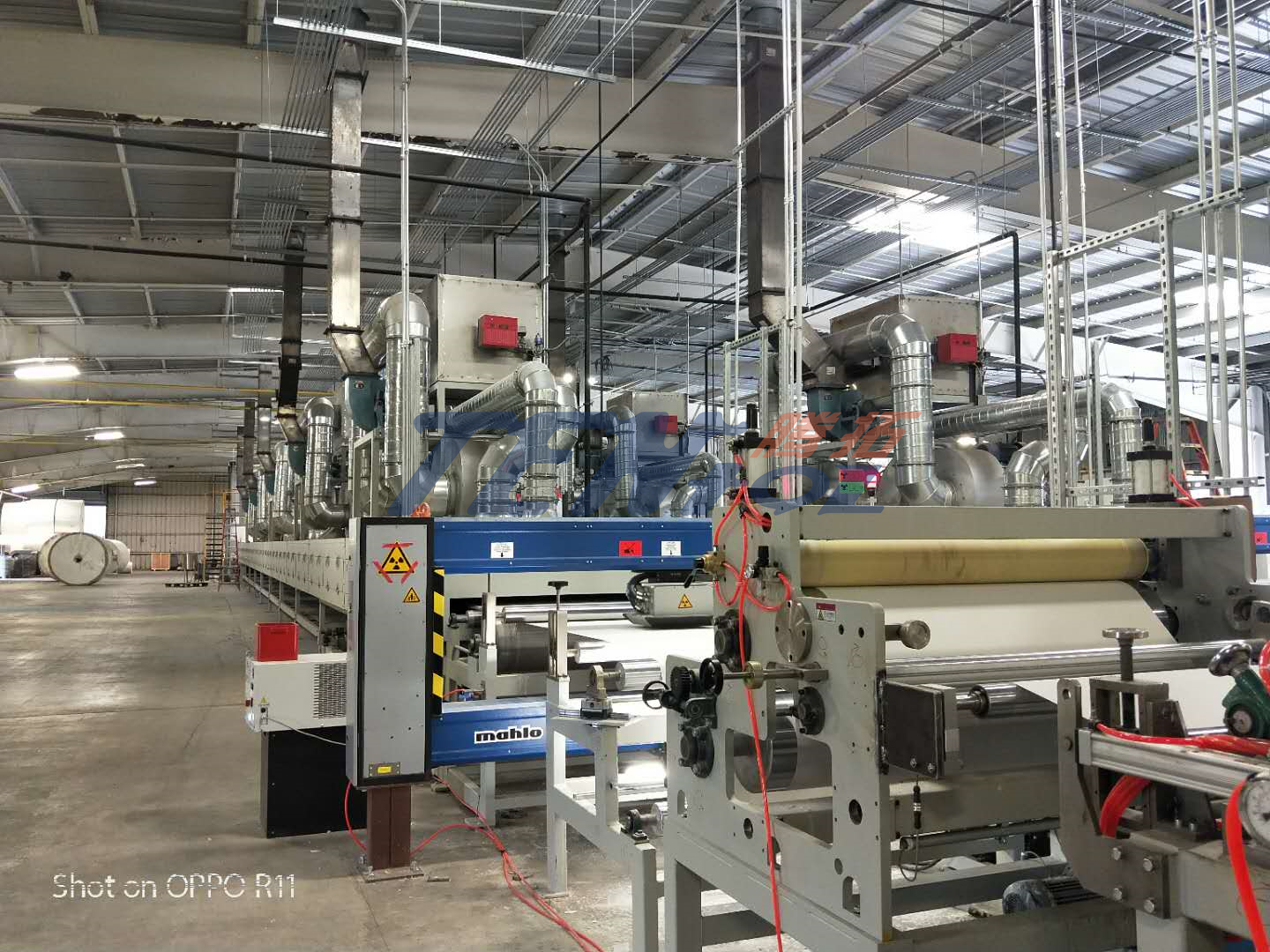

l 采用高效烘箱,温度多段自动控制,有天然气、蒸汽、导热油、电加热等多种加热方式可供选择;

The line is using high efficiency oven, multi-stage automatic temperature control. Multiple heating methods such as natural gas, steam, oil, electric heating and other heating methods are available;

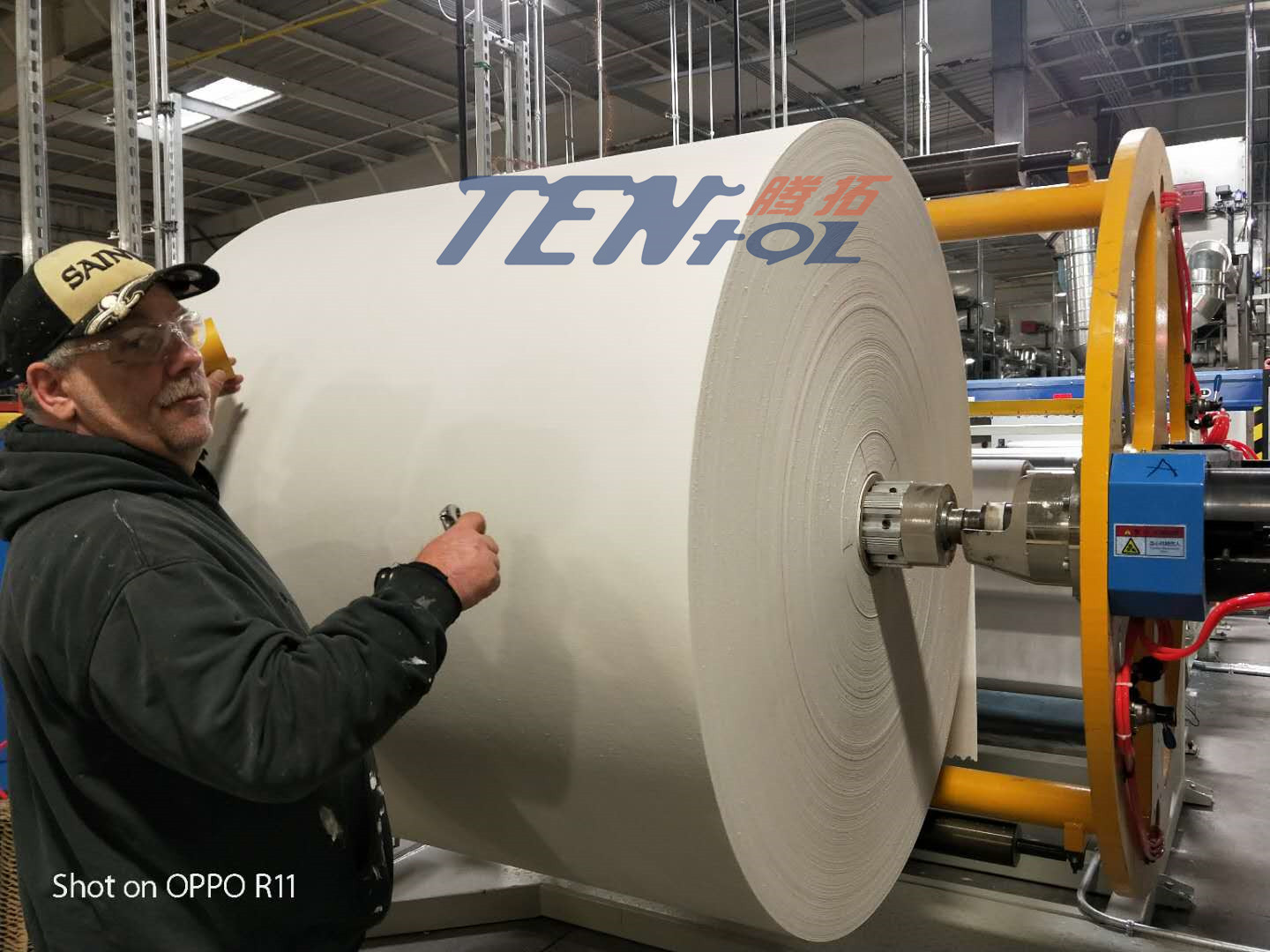

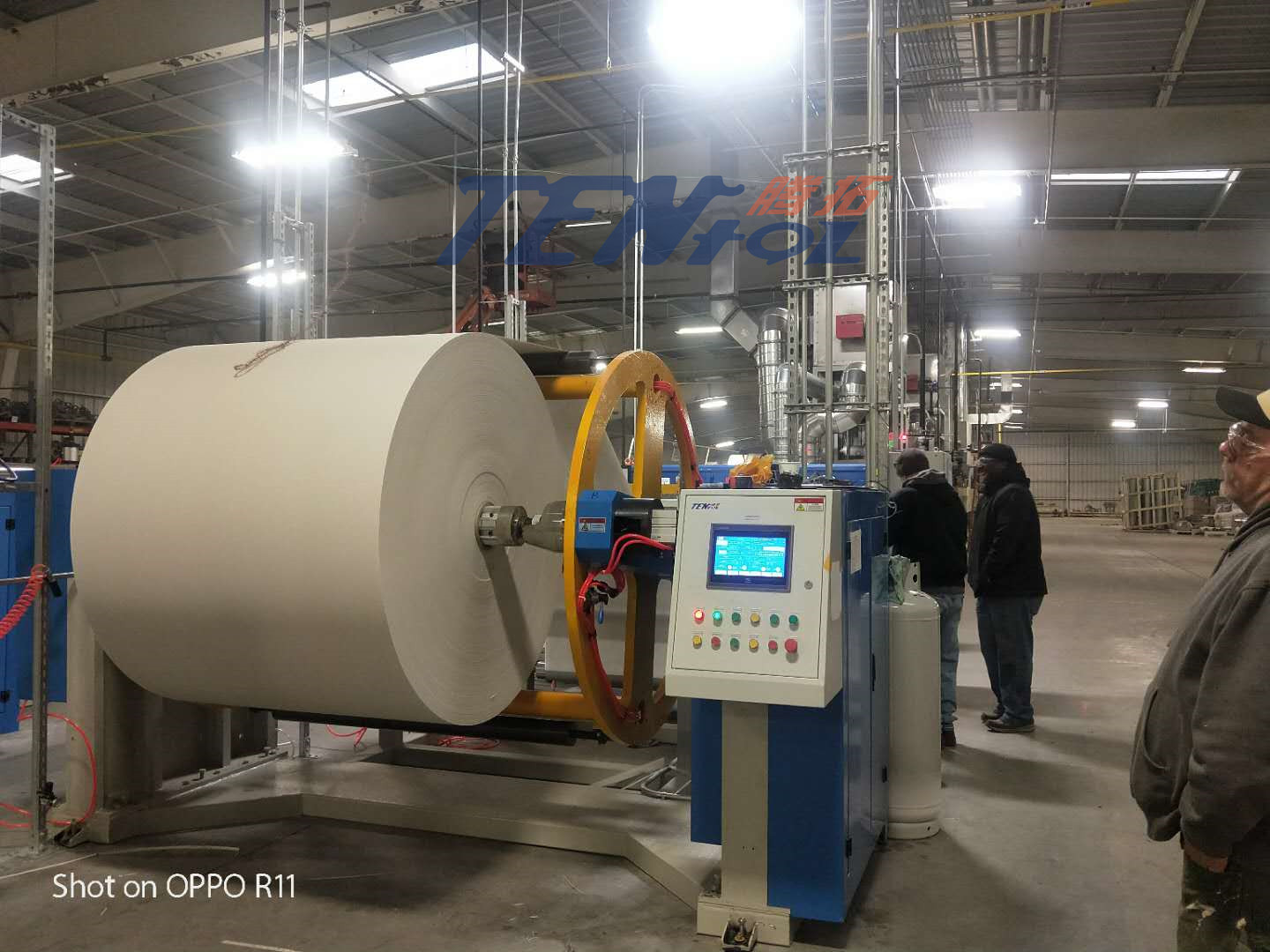

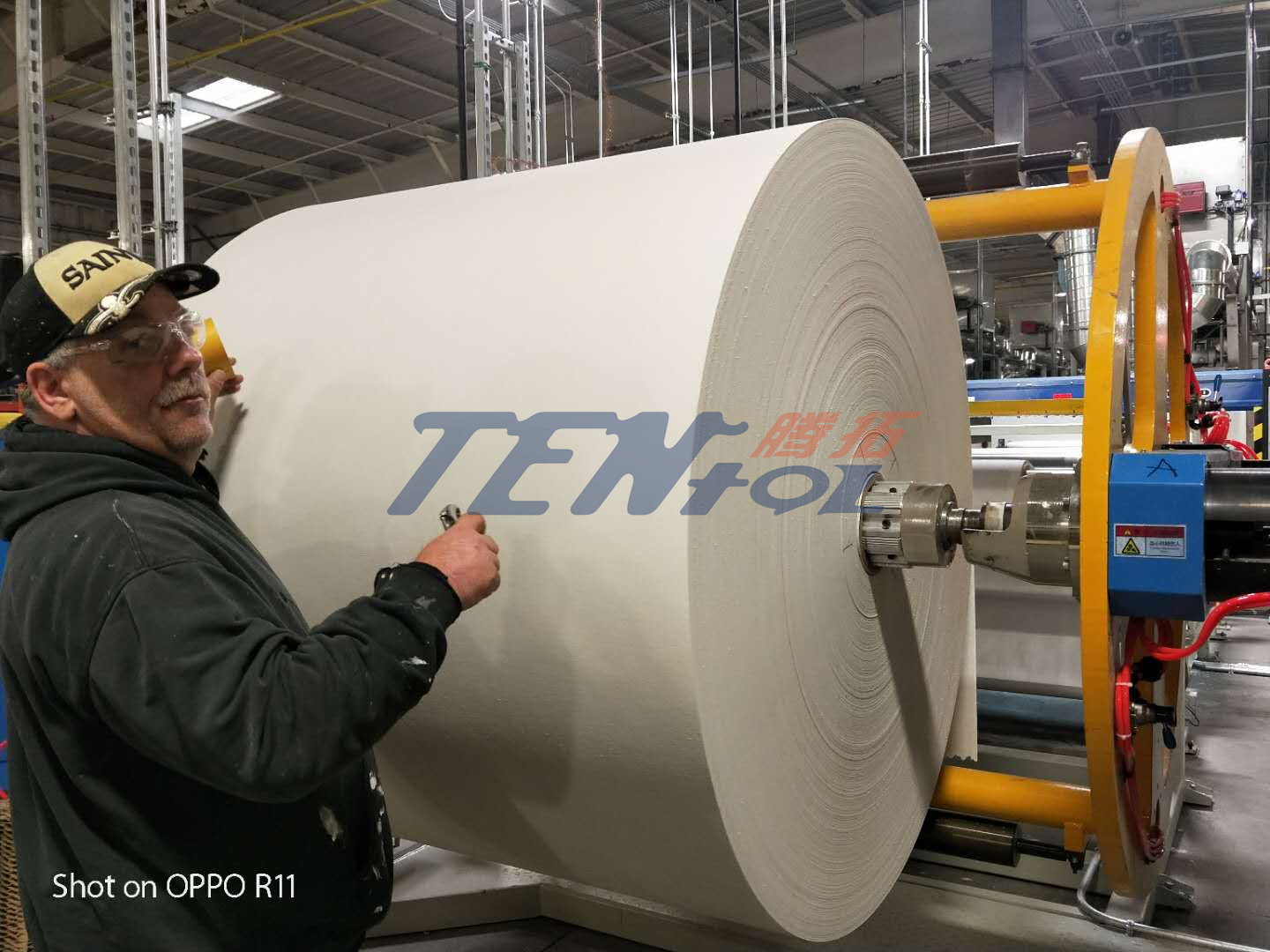

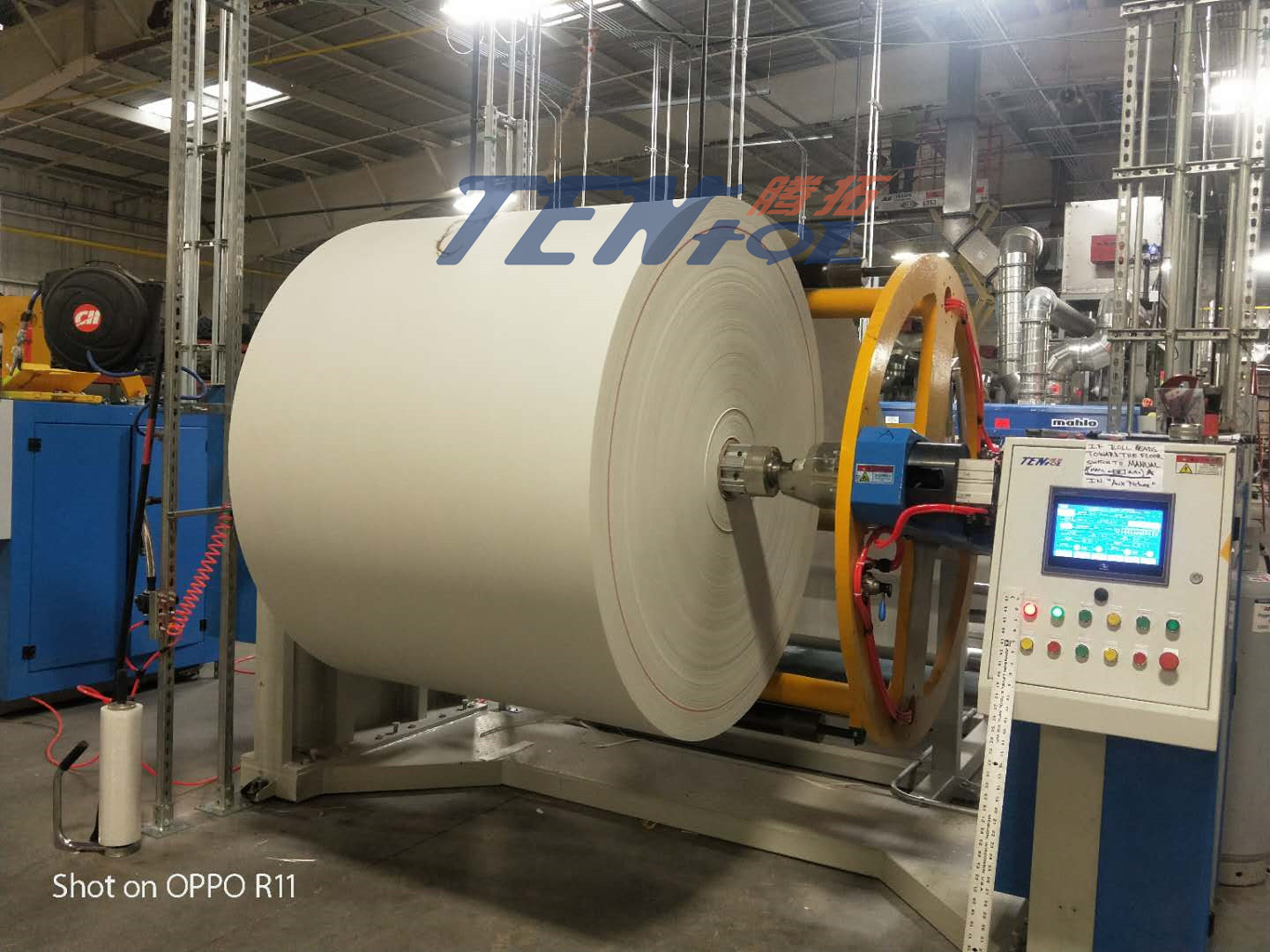

中控台大屏集中对涂层厚度、张力、速度、温度、长度等参数进行自动控制,收放卷均可实现不停机换卷;

All parameters are easy set and center controlled on the large touch screen, such as coating thickness, tension, speed, temperature and length, etc., and the winding material can be load and unload without stop;



l 可提供直刮、软刮、转移等多种涂布方式,以满足不同产品;

              可选配接料平台、储料箱、在线测厚仪等单元;

Rich configuration: it can provide a variety of coating methods such as direct scraping, soft scraping and transfer coating to meet different products;

Optional parts include: Material receiving platform, storage box, online thickness gauge, etc.;



定制选型参数(type selection parameter):

机器型号

Type

TT-TC1400

机器速度

Design Speed

≥35m/min

材料有效宽度

Material Width

1300 mm

收放卷直径范围

Winding and unwinding diameter range

1200~2300mm

纸管内径

Package Inner Diameter

76~305mm

烘箱长度

Oven Length

≥24m

加热方式

Heating Type

天然气、导热油、蒸汽、电加热

Natural gas, Oil, Steam, Electrical
